How to install ubuntu, ns2 on windows 10
DISCLAIMER : I’ve followed the same procedure and got it installed and working , its upto u to believe and follow !
Im not responsible for any mishappening or carelessness .
I got many errors for which i have referred to many youtube videos,so now making a single video to help u all ! All The Best !

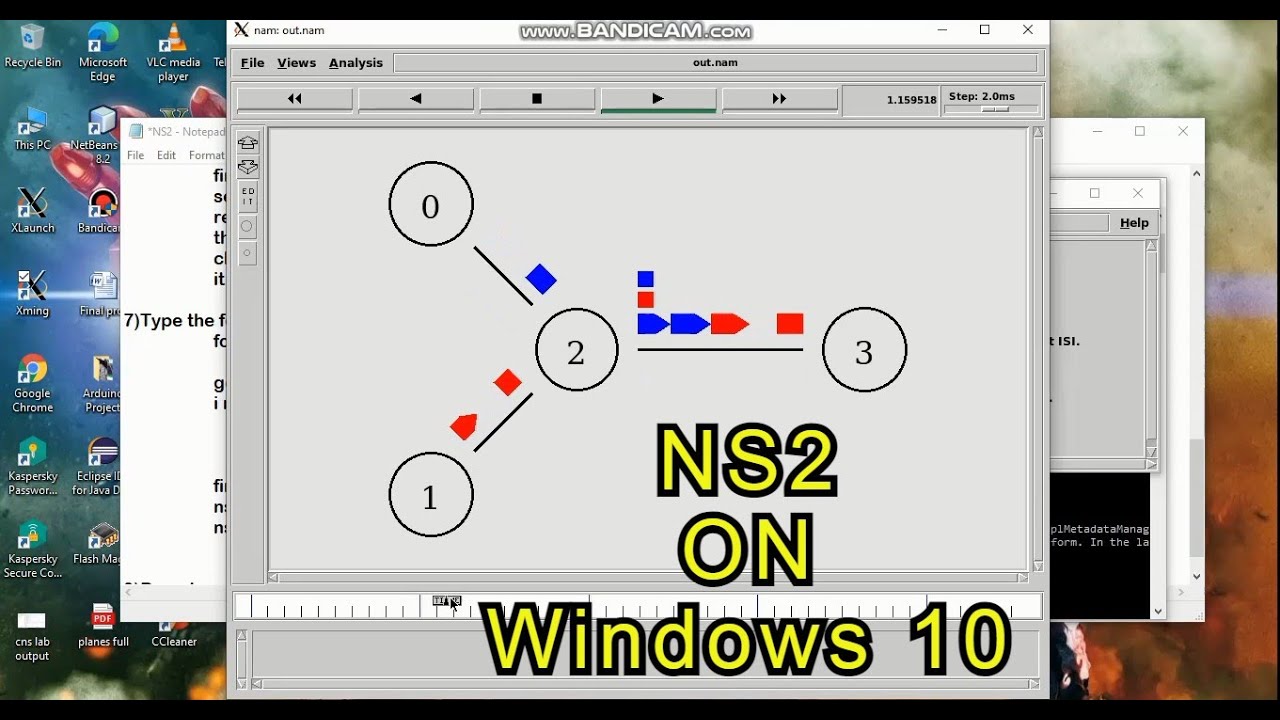

Hello guys, In this video ill be showing u all how to install ubuntu, ns2 on windows 10 .
Comment if any error ,ill try to find a sollution.
Sample Program –
# Create a simulator object
set ns [new Simulator]
# Define different colors
# for data flows (for NAM)
$ns color 1 Blue
$ns color 2 Red
# Open the NAM trace file
set nf [open aout.nam w]
$ns namtrace-all $nf
# Define a ‘finish’ procedure
proc finish {} {
global ns nf
$ns flush-trace
# Close the NAM trace file
close $nf
# Execute NAM on the trace file
exec nam out.nam &
exit 0
}
# Create four nodes
set n0 [$ns node]
set n1 [$ns node]
set n2 [$ns node]
set n3 [$ns node]
# Create links between the nodes
$ns duplex-link $n0 $n2 2Mb 10ms DropTail
$ns duplex-link $n1 $n2 2Mb 10ms DropTail
$ns duplex-link $n2 $n3 1.7Mb 20ms DropTail
# Set Queue Size of link (n2-n3) to 10
$ns queue-limit $n2 $n3 10
# Give node position (for NAM)
$ns duplex-link-op $n0 $n2 orient right-down
$ns duplex-link-op $n1 $n2 orient right-up
$ns duplex-link-op $n2 $n3 orient right
# Monitor the queue for link (n2-n3). (for NAM)
$ns duplex-link-op $n2 $n3 queuePos 0.5
# Setup a TCP connection
set tcp [new Agent/TCP]
$tcp set class_ 2
$ns attach-agent $n0 $tcp
set sink [new Agent/TCPSink]
$ns attach-agent $n3 $sink
$ns connect $tcp $sink
$tcp set fid_ 1
# Setup a FTP over TCP connection
set ftp [new Application/FTP]
$ftp attach-agent $tcp
$ftp set type_ FTP
# Setup a UDP connection
set udp [new Agent/UDP]
$ns attach-agent $n1 $udp
set null [new Agent/Null]
$ns attach-agent $n3 $null
$ns connect $udp $null
$udp set fid_ 2
# Setup a CBR over UDP connection
set cbr [new Application/Traffic/CBR]
$cbr attach-agent $udp
$cbr set type_ CBR
$cbr set packet_size_ 1000
$cbr set rate_ 1mb
$cbr set random_ false
# Schedule events for the CBR and FTP agents
$ns at 0.1 “$cbr start”
$ns at 1.0 “$ftp start”
$ns at 4.0 “$ftp stop”
$ns at 4.5 “$cbr stop”
# Detach tcp and sink agents
# (not really necessary)
$ns at 4.5 “$ns detach-agent $n0 $tcp ; $ns detach-agent $n3 $sink”
# Call the finish procedure after
# 5 seconds of simulation time
$ns at 5.0 “finish”
# Print CBR packet size and interval
puts “CBR packet size = [$cbr set packet_size_]”
puts “CBR interval = [$cbr set interval_]”
# Run the simulation
$ns run
