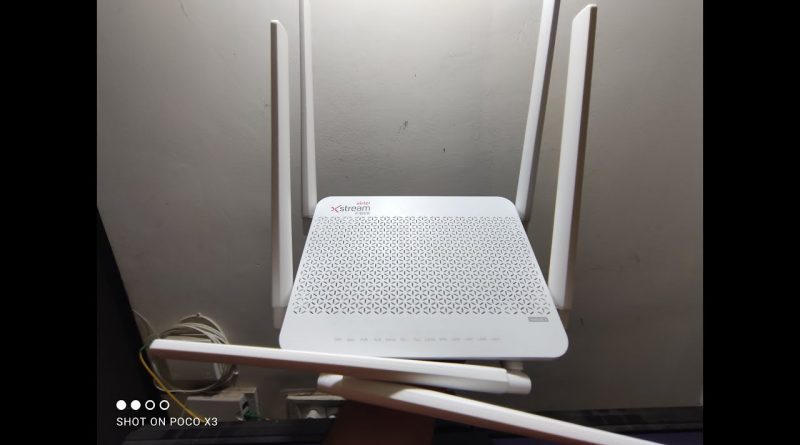

New Router by Airtel Xstream Fiber | 4×4 Wi-Fi Router (H680GM-A)
Few highlights of this ONT+Wifi Router are (H680GM-A) :
6 External antennae (4 of 5ghz + 2 of 2.4ghz antenna)
With 4 gigabit ethernet ports
1 USB 3.0 port
2 Telephone Rj11 ports.
4X4 5ghz MIMO + 3X3 2.4ghz MIMO
Specifications – H680GM-A2 GPON Gigabit ONT with VoIP & Wi-Fi Service V2.0
128MB Flash Memory
256MB SDRAM
GPON Interface Capacity: Up 1.25Gbps / Down 2.5GbpsGPON ONT
ITU-T G.984.2 compliant
Forward Error Correction (FEC)
Multiple T-CO N Ts/GEM ports per device
Flexible mapping between GEM port and T-CONT
Priority queues and scheduling on Upstream
Activation with automatic discovered Serial Number and password
Dying GaspL2/L3/L4 Switch
IEEE802.1D and IEEE802.1Q
Address leaning with auto aging
VLAN Filter
L2/L3 Filter
BPDU Filter
Static routing
DHCP server /client
DNS proxy- Auto/Manual
NAT/NAPT/Port forwarding(Forwarding engine up to 16K)
MCL, DDNS, UPnP Port mapping, ALG
NTP
PPPoE client- Automatically initiating the session- Automatically keep alive Multicast
IGMP snooping
IGMP proxyQuality of Service
HW-based internal IEEE 802.1p (CoS)
Strict Priority (SP)
802.1Q (VLAN tag) QoS mapping, To S/CoS
8 queues per portManagement
ITU_T 984.2 compliant OMCI interface
IEEE802.3x flow control
LED indications for maintenance
Web-based management
ONT service provisioning (on the OLT-side)VLAN
VLAN port filtering
Destination address port filteringWireless LAN
IEEE802.11a/b/g/n/ac compliant
Multiple SSIDs
Up to 32 devices can accessed simultaneously
64/128bit wireless encryption protocol (WEP)
Bandwidth: 2.4GHz, 5GHz
3T3R WiFi (2.4G band), 4T4R WiFi (5G band)
2G 3×3 MIMO, 5G 4×4 MIMO, MU_MIMO(wave 2)
Max. data rate: 11Mbps in 802.11 b, 54Mbps in 802.11 a/g , 600Mbps in 802.11 n, 1700Mbps in 802.11ac
Supports 20 MHz, 40 MHz and 80MHz(11ac) channels
Security: W E P, W PA-PSK (TKIP) & WPA2-PSK (AES)
Wi-Fi Protected Setup (WPS)VoIP Features
SIP (RFC3261/3262/3264)
5-REN per POTS
RTP, RTCP (RFC3550/3551)
Multiple codecs: G.711, G.723.1, G729
T. 38 FAX mode
Echo cancellation
Airtel XStream Rs 3999 broadband plan will now come with a 4X4 router that will give users WiFi coverage with 1Gbps coverage in small homes and offices. The plan listed as the VIP subscription has unlimited internet, with up to 1Gbps speed. It also comes with a complimentary Airtel Xstream Box that offers 550 TV channels and OTT content from the Airtel Xstream app library that includes over 10,000 movies and shows aggregated across 7 OTT apps and 5 studios.
What is 2×2 MU-MIMO, 3×3 MU-MIMO, and 4×4 MU-MIMO?
These numbers— 2×2, 3×3, or 4×4— refer to the variations in a MU-MIMO router, or rather, the number of bandwidth streams— two, three, or four— that the router has.
While routers can have a varied number of streams, most phones, laptops, game consoles, and other common devices are usually only 1×1 or 2×2, meaning they support only one or two streams.
Do I need MU-MIMO technology?
MU-MIMO compatibility is the difference between your devices having to queue up for bandwidth or being able to send and receive information at the same time at equal speeds. For example, if you have a 2×2 phone, a 2×2 laptop, and a 4×4 router, but they don’t all support MU-MIMO, the router would only be able to communicate with the one device at a time, using just two of its four available streams.
So, do you need MU-MIMO technology?
If you WFH, love to upgrade to anything “smart,” live with a hardcore gamer or binge-watcher, or have noticed your home WiFi connection slowing down as the number of devices in your home goes up, the answer is yes. Your network (and household) will thank you.
